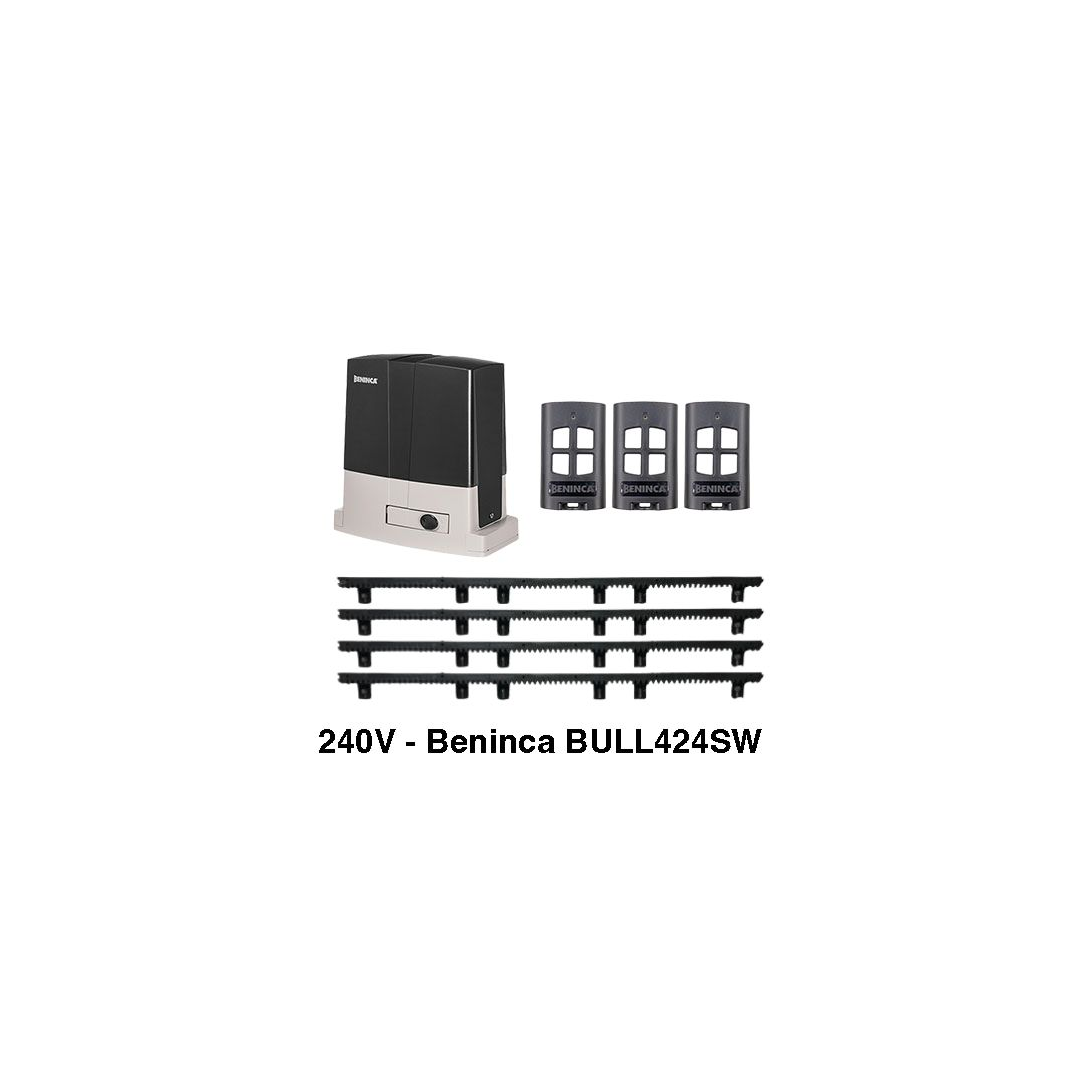

Beninca BULL424 SW 450kg Kit

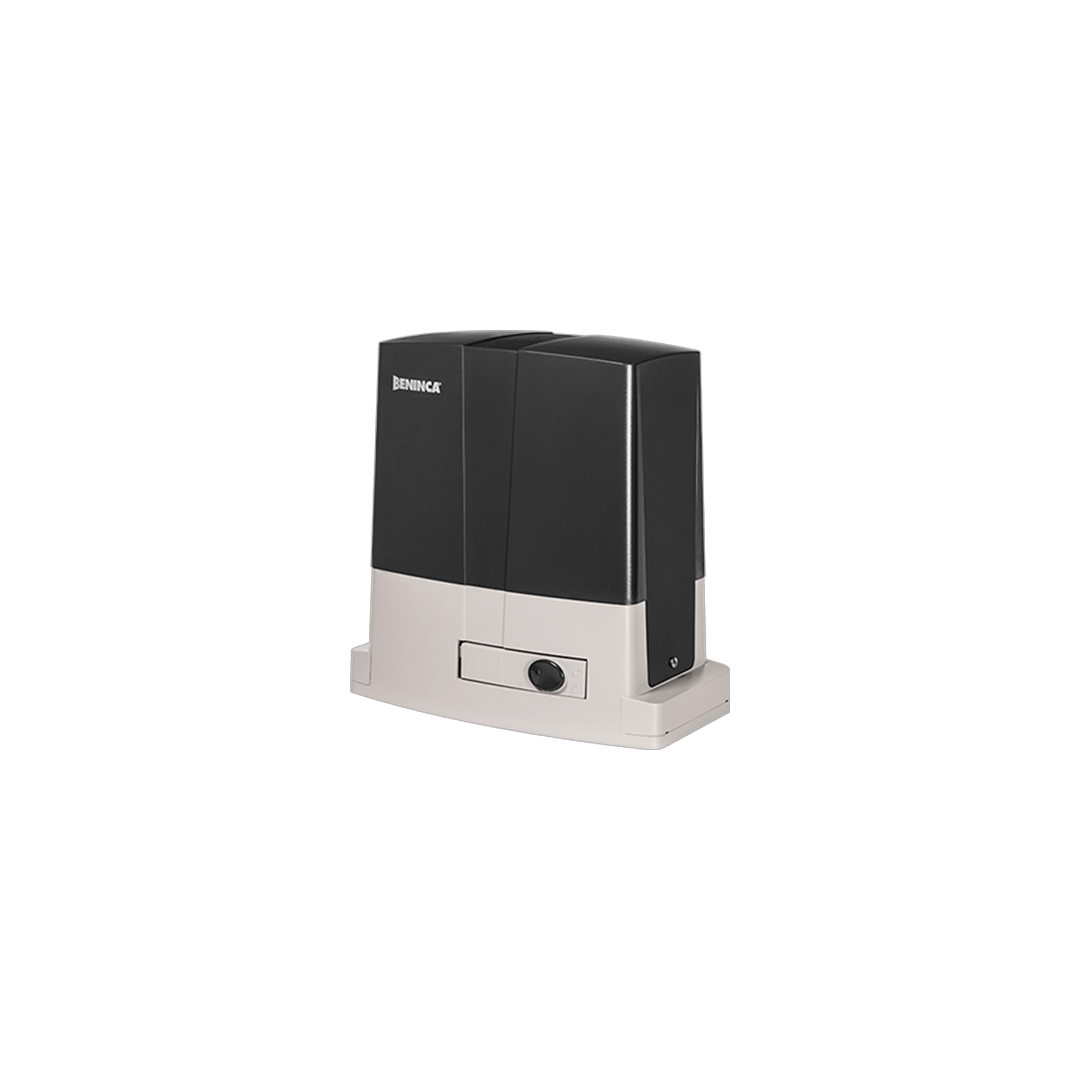

The BULL424SW is a 24 volt motor designed for residential and commercial sliding gates up to 450kg in weight. 24 VOLT ELECTRIC GATE OPERATOR - RESIDENTIAL - 450KG The BULL424SW by Beninca is plain and simple Beninca quality and reliability throughout. The BULL424SW is designed for residential and commercial sliding automatic gates up to 450kg in weight.

24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 240 Vac which reduces energy consumption and ensures a long lifespan of the actuator | Control unit with trimmers and dip-switches | The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor (2 x 1.2 Ah) | Anti-crushing system with amperometric obstacle detection.

The BULL424SW has a built in control board in its own seperate enclosure with a dedicated 433mhz wireless receiver and inputs for photocells and switches etc. The BULL also comes with a base plate. Battery backup is optional with the addition of the battery module and two 1.3Ah rechargeable batteries.

 Motor Voltage - 24 volts DC

Current Standby - 8mA

Current at use - 3.2A

Motor power - 80W

Maximum thrust - 428N

Operating speed - 11 metres per minute (adjustable)

Maximum gate size - 450 kg

Duty cycle - 80%

Height - 330mm Width - 326mm Depth - 140mm

Weight - 7.6 Kg

IP rating - IP44
